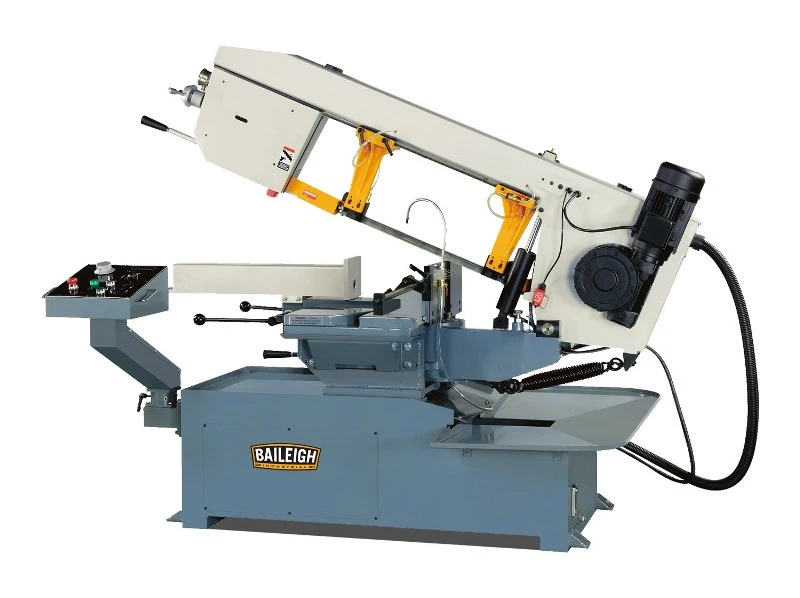

12" Baileigh BS-20M-DM Dual Mitering Band Saw
Have one to sell?
ConditionNew
1 available
New
13" x 18" BAILEIGH Dual Mitering Band Saw BS-20M-DM, Rectangle, 13" Round, 13 in Square, 220V or 440V 3-phase models, 13" round capacity at 90°, Head miters 45° left, 60° right, 1.25" blade width, Variable speed: 69 to 306 fpm,
Model # BS-20M-DM
Maximum Capacity Rounds 13"
Maximum Capacity Rectangular 13"
Type Dual Miter Horizontal/Vertical Band Saw
Phase 3 PH
Voltage 220V
Horsepower 3 HP
Blade Dimensions 162.6">L x .042"W x 1.3"H
Blade Speeds_SFPM 60 - 306 SFPM
Capacity 13" x 18"
Capacity Rectangular 90° / 45° / 60°: 13" x 18" / 13" x 10.6"> / 12.4" x 7.7"
Capacity Round 90° / 45° / 60°: 13" / 12" / 8.5"
Capacity Square 90° / 45° / 60°: 13" / 12" / 8.5"
Miter Angle L: 0° - 60°, R: 45°
Prop. 65 Yes
Shipping Dimensions 88.6"L x 35.5"W x 61.4"H
Weight 2,156 lbs.
Country of Origin IMPORT
Shipping Restrictions TRUCK SHIP ONLY (DROP SHIP ITE
* specifications subject to change without notice.
Need to increase production? The manual BS-20M-DM dual miter band saw offers hydraulic descent, a roller infeed, and a material stop for efficiency. With its steel frame, the saw will last for many years.
FEATURES
Dual mitering saw with just a flick of the wrist and a push or pull of the head.
Heavy duty in feed table and out feed table to help save strain on the operator.
Inverter drive that allows for infinite blade speed adjustments from 69 ~ 306 FPM. The inverter, along with hydraulic descent pressure, allows the operator to select the proper speed and feed rate to increase cut quality and blade life.
Quick lock vise.
† Ships Direct From Factory.
