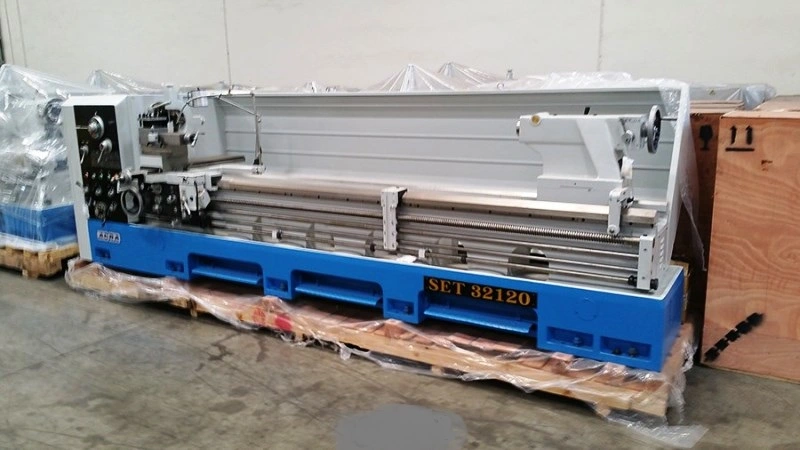

36" x 240" ACRA Model 3600SET Precision Engine Lathe
Have one to sell?
ConditionNew
1 available
New
NEW!! 36" x 240" ACRA Model 3600SET Precision Engine Lathe,
Made in Taiwan
Headstock:
• All gears and mandrel are made of alloy steel with heat treatment and precision ground.
• Rotating type speed changing system is easy to operate.
Spindle:
• Large bore spindle, supported by 3-point precision bearings.
• Suitable for heavy-duty cutting.
Tailstock:
• With speed reduced quill suitable for heavy duty drilling, hand wheel is with dual dial..
Apron and Saddle:
• Easy-operated overload protect safety devise.
• Central lubrication system can be operated manually or automatically.
Gear Box:
• Universal gear box design, is able to cut metric thread, Imperial thread, module thread without changing gears.
Lathe Bed:
• High tensile ribs structure. high precision and wide bed surface.
• With hardened and precision ground.
• One piece structure lathe bed enhances the machines life and working performance.
Auto Longitudinal Stop:
• Auto longitudinal travel devise will control the feed of tool post.
Emergency Brake System:
• More safe emergency brake system can shut off power supply simultaneously.
Specifications;
Capacity: 36″/47″ x 240″
Swing Over Bed: 36-5/8″
Swing Over Cross Slide: 27-1/2″
Swing In Gap: 47-1/4″
Width of Gap: 10″
Distance Between Centers: 240″
Bed Width: 18-1/8″
Spindle Nose: A2-11
Spindle Bore: 6″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: 12
Spindle Speeds – Range: 15 ~ 1,000 RPM
Cross Slide Travel: 16-1/2″
Compound Slide Travel: 10″
Inch Threads: 2 ~ 28 TPI
Metric Threads: 0.8 ~ 14 mm
Module Threads: 0.5 ~ 7
Diametrical Threads: 4 ~ 56
Longitudinal Feeds: 0.05″ ~ 0.7 mm/rev
Cross Feeds: 0.025 ~ 0.35 mm/rev
Tailstock:
Quill Diameter: 3-3/4″
Quill Travel: 9″
Quill Taper: MT NO.5
Spindle Drive Motor: 25 HP x 4P
Voltage: 230V/460V AC/3 PH
Weight 20,500 lbs
Dimensions 315 × 63 × 75 in
Standard Equipment:
1 PC 20” 3 Jaw Chuck
1 SET Electromagnetic Brake
1 SET 2 Way Rapid Traverse Device
1 PC Center Sleeve
2 PCS Center (M.T.5#)
1 PC Tool Post Wrench
1 SET Anchor Bolt
1 SET Tool Box & Tool
1 SET Coolant Pump
1 PC Work Light
1 PC Splash Guard
1 SET Steady Rest 11.8″
1 PC Full Length Rear Splash Guard
1 PC 4 Way Tool Holder
Options/AccessoriesClose
Steady Rest (20”) …………………………………. $ 3,000.00
Steady Rest (24”) SET36 Only…..………………. $ 4,000.00
Face Plate………………………..…………………. $ 1000.00
Taper Attachment……………………………..……. $ 3,500.00
Installation Taper Attachment………………..……. $ 750.00
Change 6” to 9” A2-15 Nose………………………. $ 19,000.00
Newall Digital Read-Out-60" DP700………....…… $ 2,900.00
Newall Digital Read-Out-60" NMS300……………. $ 1,350.00
Newall Digital Read-Out-80" DP700.……………... $ 3,500.00
Newall Digital Read-Out-80" NMS300…………..... $ 1,600.00
Newall Digital Read-Out-120" DP700…..………… $ 4,495.00
Newall Digital Read-Out-120" NMS300……...….... $ 1,900.00
Newall Digital Read-Out-160” DP700……….……. $ 5,695.00
Newall Digital Read-Out-200” DP700……..……… $ 7,100.00
Newall Digital Read-Out-240” DP700…….….…… $ 7,550.00
Acu-Rite Digital Read-Out-60"/80"/120" 203/303.......................... $ P.O.R.
Fagor or Mitutoyo Digital Read-Out…...............…………………… $ P.O.R.
Import Quick Change Tool Post …….……………….……….……… $ 1,500.00
Aloris Tool Post Set (DA) 5 pc……....……………………………….. $ 1,900.00
