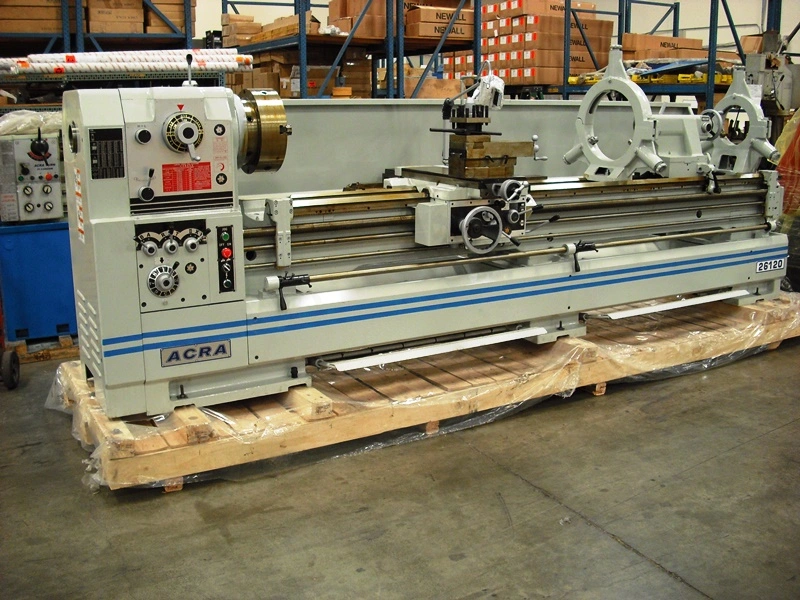

26" x 60" ACRA MODEL 2600 ACH PRECISION ENGINE LATHE

STANDARD EQUIPMENT:
15" 3 Jaw Chuck
Coolant System
4 Way Tool Holder
Steady Rest (1 3/5" - 10")
Halogen Light
Full Length SplashGuard

Made in Taiwan

OPTIONAL ACCESSORIES: PRICE
Steady Rest (1 3/5" - 10") .................................... $ 1,850.00
Large Steady Rest (7 1/2" - 15") ...........................$ 2,100.00
7" Follow Rest ........................................................$ 650.00
20" Face Plate ........................................................$ 650.00
Taper Attachment ....................................................$ 2,400.00
Newall Digital Read-Out-14" X 60" DP700............. $ 2,900.00
Acu-Rite Digital Read-Out-14" X 60" VUE............. $ 2,300.00
Digital Read-Out-14" X 60" 200S.......................... $ 2,600.00
Sony........................................................................... P. O. R.
FAGOR...................................................................... P. O. R.
D.R.O. Installation..................................................... $ 375.00
Import Quick Change Tool Holder............................. $ 750.00
Live Center MT 5...................................................... $ 350.00
4 Jaw Chuck 20" (China)......................................... $ 1,500.00
4 Jaw Chuck 20" (Bison) ............................................ P. O. R.
Chuck Guard............................................................ $ 450.00
Turret Carriage Stop ................................................. $ 320.00
Micro Carriage Stop ................................................. $ 320.00
DIMENSIONS " X " X ", #6700 LBS
ELECTRICS 230/460V AC/3PH
SPINDLE SPEEDS 12 13-1200
SPINDLE NOSE D1-11
SPINDLE BORE 4-1/16"
DISTANCE BETWEEN CENTERS 60"
SWING OVER CROSS SLIDE 17 1/2"
SWING IN GAP 35 1/8"
SWING OVER BED 26"
