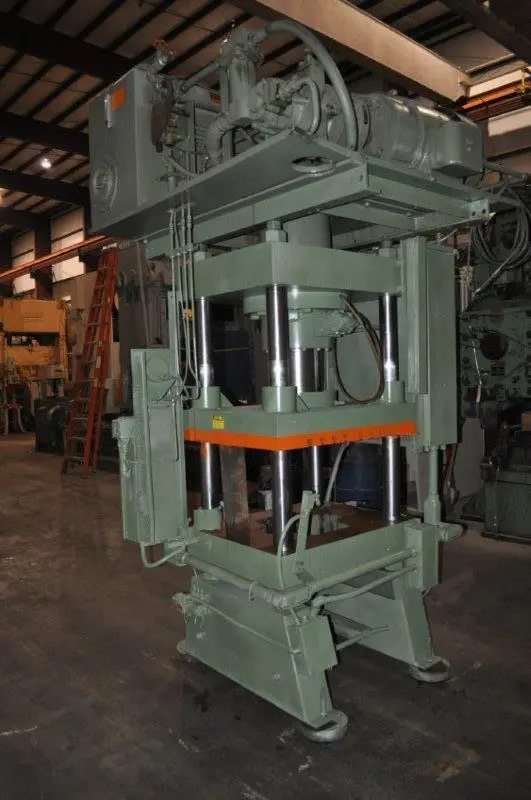

250 TON DAKE HYDRAULIC 4 POST PRESS,
Have one to sell?
ConditionUsed
1 available
250 TON DAKE HYDRAULIC 4 POST PRESS, 18" Stroke, 22" DLO, 37" x 29" Bed
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
Approx. Weight 10,000 Lbs
Approx. Dimensions 67" LR x 72" FB x 120" H
Cylinder Diameter 9"
Post Diameter 3.5"
T-Slotted Bolster Thick
Ram Area 37" LR x 29" FB, T-SLOTTED
Bed Area 37" LR x 29" FB
Daylight 22"
Stroke 18"
Capacity 250 Tons
Area Between Posts 26" LR x 14.5" FB
4000 PSI MAXIMUM PRESS
RACINE PUMP AND VALVES
ALLEN BRADLEY MICROLOGIC 1500 CONTROL
PALM BUTTONS
INTERNAL TANK FILTER
HEAT EXCHANGER TANK MOUNTED
MOTOR: 20 HP, 220/440/3, 1200/1000 RPM
