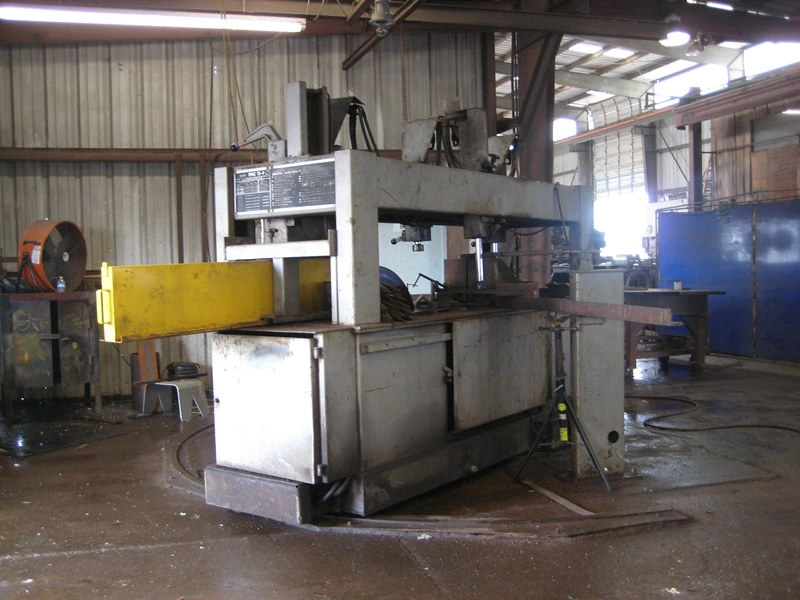

12" X 39" TRENNJAEGER PROMABEAM COLD SAW

Catalogue Specifications:
Designed for longitudinal and cross cutting of steel sections, plates and billets in straight cuts.

Machine capacities are: cutting height: 12", cutting length: 39".
-Machine stand of solid steel construction.
- Planed machine table of high tensile strength steel.
- Cutting head unit adjustable dovetail guides.
- Gear box with large helical hardened gears.
- For segmental circular cold saw blade of 760mm (30") and 910mm (36") diameter.
- Fixture for chip remover.
- Adjustable blade stabilizer.
- Centralized lubrication system for guide tracks of cutting head carriage.
- Two-speed drive motor 6.1/7.5 HP, 1800/3600 RPM, with Vee-belt step pulley for 4 saw
blade periphery speeds 52/104 and 72/144 ft/min.
- Electrics upgraded to push buttons with contactors.
- Complete hydraulic system. Hydraulic motor, 4 HP, 1500 RPM, pump, pressure gauge and
thermo-magnetic motor protection switch.
- Complete coolant system with 0.2 HP motor and pump.
- Manual control valves for saw feed and vertical and horizontal clamping.
- Two vertical clamping cylinders with 12" stroke, adjustable longitudinally and one horizontal
clamping cylinder with 1½" stroke adjustable laterally.
- All hydraulic and electrical installations are easily accessible.
- Built-in tool and electrical cabinets.
- Machine finish - gray.
- Powered mitre turntable.

*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
**Offered "As Inspected, In Plant, Under Power"
Electrics 440/3/60
Saw Blade 760mm, 800mm, 910mm
Vertical Clamp Stroke 15-7/8"
Cut Capacity 12" x 39"
