ACRA Model AM-2S PRECISION MILLING MACHINES
Mills, Mills, Vertical

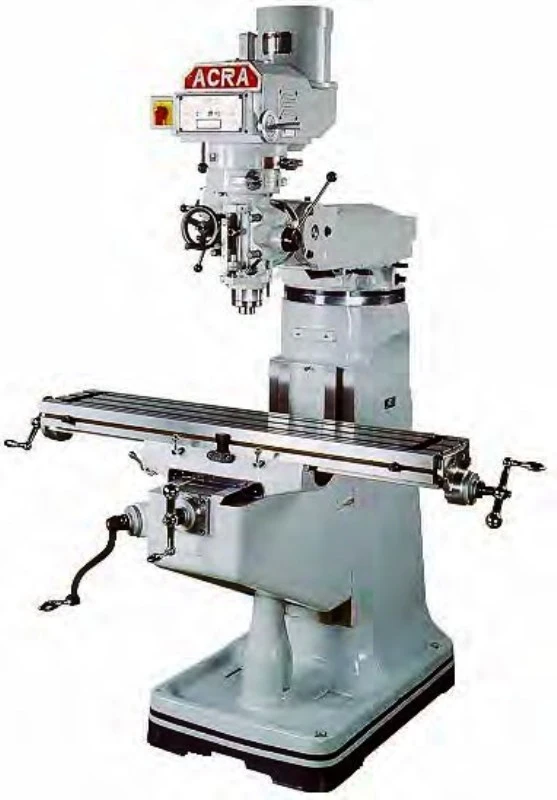

NEW!! ACRA Model AM-2S Vertical Knee Mill w/ 9" X 49" table, R-8 spindle with 3 HP Step Pulley Head
Features:
Class 7 Angular Contact Bearings
Certified Meehanite Casting
Ram Locking System U.S. Patent #4990039 Utilizing 6 T-Bolts
Hand Scraped Turret-Column Ways
Dust Cover For Knee And Crossfeed Ways
Precision Hardened And Ground Table With Turcite
Precision Hardened And Ground Ways
Double Wall Column
Built-In Coolant Tank In Base
Motor 3 Hp 3 phase
Spindle Speeds (Variable) 65 - 4200 rpm
Quill Travel 5"
Weight 2,200 Lbs
Table Size 9" X 49"
Longitudinal Travel 36"
Cross Travel 12-1/2"
Vertical Knee Travel 16"
Ram Travel 18"
Spindle Taper R-8 or #30 Taper
STANDARD EQUIPMENT:
Quill Heat Treat Hardened & Chromed
Hardened Ground Way
One Shot Lubrication
Meehanite Casting
Halogen Work Light
OPTIONAL ACCESSORIES: PRICE
6" Vise (China) W/Swivel………………………………………………………………… $ 300.00
6" Vise (Taiwan) W/Swivel ................................................................ $ 550/700
R-8 Collet Set 12 PC (China) -AM2/AM5 ............................................ $ 100.00
R-8 Collet Set (Taiwan) - AM2/AM5 .................................................. $ 125.00
Clamping Kit 53 PC (China) ................................................................. $ 100.00
Clamping Kit 53 PC (Taiwan) .............................................................. $ 125.00
6" Rotary Table H/V … … … … … … … … … … … … … … … … … … … … … $ 450.00
8" Rotary Table H/V .............................................................................. $ 600.00
10" Rotary Table H/V ............................................................................ $ 750.00
12" Rotary Table H/V ............................................................................ $ 900.00
4" Riser Block – LCM-50 ..................................................................... $ 700.00
6" Riser Block – LCM-50 ................................................................. $ 750.00
4” Riser Block LCTM 1,2,3 ..................................................................... $ 750.00
6” Riser Block LCTM 1,2,3 .................................................................... $ 850.00
4" Riser Block – AM2, AM5 …….............................................................. $ 700.00
6" Riser Block – AM2, AM5 ……….......................................................... $ 750.00
8" Riser Block – AM2, AM5 ………............................................................ $ 850.00
Maxi-Torque Power Draw Bar R-8 / #30, 40 Taper (USA) ................... $ 700.00
Right Angle Milling Attachment R-8 / #30 Taper ................................. $ 1,100.00
Right Angle Milling Attachment #40 Taper ............................................ $ 1,450.00
Right Angle Head R8 ............................................................................. $ 750.00
Right Angle Head R30 ............................................................................... $ 750.00
Right Angle Head #40 ............................................................................. $ 900.00
Coolant System / Chip Tray .................................................................... $ 850.00
Safety Handle………………………………………………………………………………………… $ 90.00
Quick Change Tool Set (17PC) - AM2………............................................... $ 350.00
Quick Change Tool Set (17PC) - AM5 ..................................................... $ 400.00
Auto Lube Exchange ................................................................................. $ 300.00
Auto Lube ................................................................................................. $ 400.00
ACRA LC Series Variable speed (R8 or #30NST) ....................................... $ 5,000.00
ACRA Mill Head 2 H.P. 16 Speed Step Pulley (2 Speed) (R8 or #30NST) ....... $ 3,500.00
ACRA Mill Head 3 H.P. Variable Speed (R8 or #30NST) ............................. $ 4,500.00
ACRA Mill Head 3 H.P. AC Inverter Drive (R8 or #NST30) ......................... $ 5,500.00
NST #30 Spindle Instead of R-8 Spindle (LCM/LCTM1)……………………………… $ 250.00
Baldor Motor…………………………………………………………………………………………... $ 650.00
Acu-Rite 2-Axis 203...……………………………………………………………………... $ 2,400.00
Acu-Rite 2-Axis 303...……………………………………………………………………... $ 2,900.00
Newall 2-Axis D.R.O. DP700…………………………………………………………. $ 1,750.00
Newall 2-Axis D.R.O. NMS300……………………………………………………... $ 1,200.00
Sony 2-Axis D.R.O. MILLMAN………………………………………………………... $ P.O.R.
Mitutoyo 2-Axis D.R.O KA-200……………………………………………………….. $ P.O.R.
Installation For 2-Axis D.R.O…………………………………………………………... $ 250.00
Acu-Rite 3-Axis 203...……………………………………………………………………. $ 3,200.00
Acu-Rite 3-Axis 303...……………………………………………………………………. $ 3,600.00
Newall 3-Axis D.R.O. DP700…………………………………………………… … $ 2,300.00
Newall 3-Axis D.R.O. NMS300……………………………………………………... $ 1,600.00
Sony 3-Axis D.R.O. MILLMAN……………………………………………………………. $ P.O.R.
Mitutoyo 3-Axis D.R.O KA-200………………………………………………………….. $ P.O.R.
Installation For 3-Axis D.R.O……………………………………………………………... $ 300.00
Power Feed X Axis Align…………………………………………………………………… $ 450.00
Power Feed Y Axis Align…………………………………………………………………… $ 550.00
Power Feed Z Axis Align…………………………………………………………………… $ 550.00
Power Feed X Axis 140 Servo (USA)……………………………………………………. $ P.O.R.
Power Feed Y Axis 140 Servo (USA)……………………………………………………. $ P.O.R.
Power Feed X Axis 150 Servo (USA)……………………………………………………. $ P.O.R.
Power Feed Y Axis 150 Servo (USA)……………………………………………………. $ P.O.R.
Power Feed Z Axis (140 Only) Servo (USA)………………………………………... $ P.O.R.
