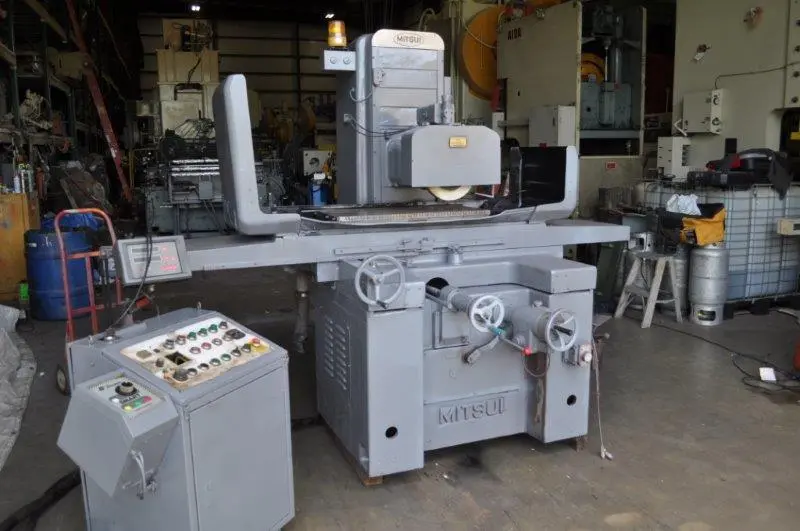

16" x 32" MITSUI HYDRAULIC SURFACE GRINDER

16" x 32" WALKER MAGNETIC CHUCK WITH SMART CONTROL
INCREMENTAL DOWN FEED
11" x 1-1/2" GRINDING WHEEL
NEWELL DIGITAL READOUT
ONE SHOT LUBE
RAPID ELEVATION
5 HP 460/3/60
DIMENSIONS:
Overall Grinder: 74" F-B x 101" L x 83" H
Operator Console: 22" x 22" x 38" H
Coolant Tank & Pump: 39" L x 16" W x 26" H
Hydraulic System: 39" L x 28" W x 36" H

*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
Chuck 16" x 32" Electromagnetic
Feeds Hydraulic Cross & Longitudinal
Longitudinal Travel 33"
Cross Travel 17-1/2"
Variable Hydraulic Table Feed 17 to 72 FPM
Table Size 16-1/2" x 35-1/2"
Spindle Speed 2050 rpm
