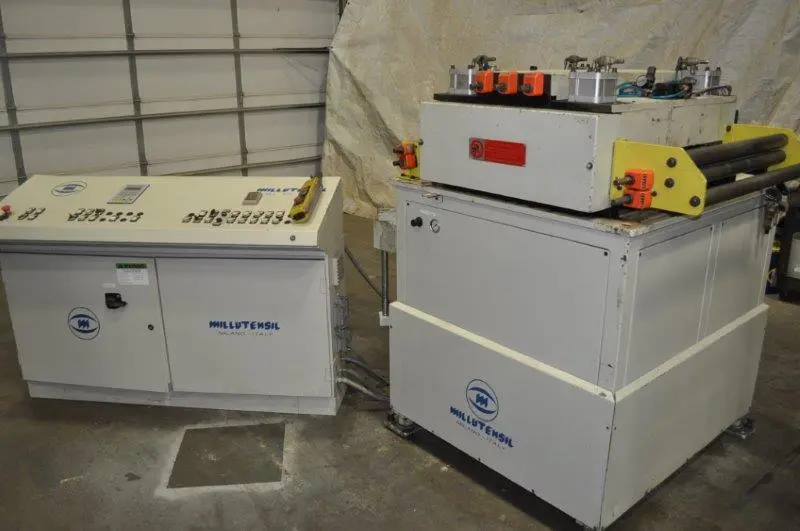

MILLUTENSIL SMOC 3000 / RDSA 1180 650

UNCOILER :
6600 LB CAPACITY
16"-20" ID
72" OD
26" MANDREL
MOTORIZED TRAVELING HEAD UNCOILER
COIL LIFT
COIL HOLD DOWN ARM
HYDRAULIC EXPANSION

STRAIGHTENER SERVO FEEDER COMBO:
26" MAXIMUM MATERIAL WIDTH
.020" - .118" THICKNESS CAPACITY
7 ROLL STRAIGHTENER
ENTRY AND EXIT PINCH ROLLS WITH AIR LIFT
PILOT RELEASE
112" LR x 70" FB x 105" TALL UNCOILER DIMENSIONS
58" LR x 55" FB x 65" TALL STRAIGHTENER FEEDER DIMENSIONS
63" LR x 23" FB x 50" TALL CONTROL DIMENSIONS

APPROXIMATE LINE WEIGHT 15,000 LBS

*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
THICKNESS .020" - .118"
MAXIMUM WIDTH 26"
CAPACITY 6600 LB x 26" x .118"
COIL CAPACITY 6,600 LBS
COIL DIAMETER 72"
