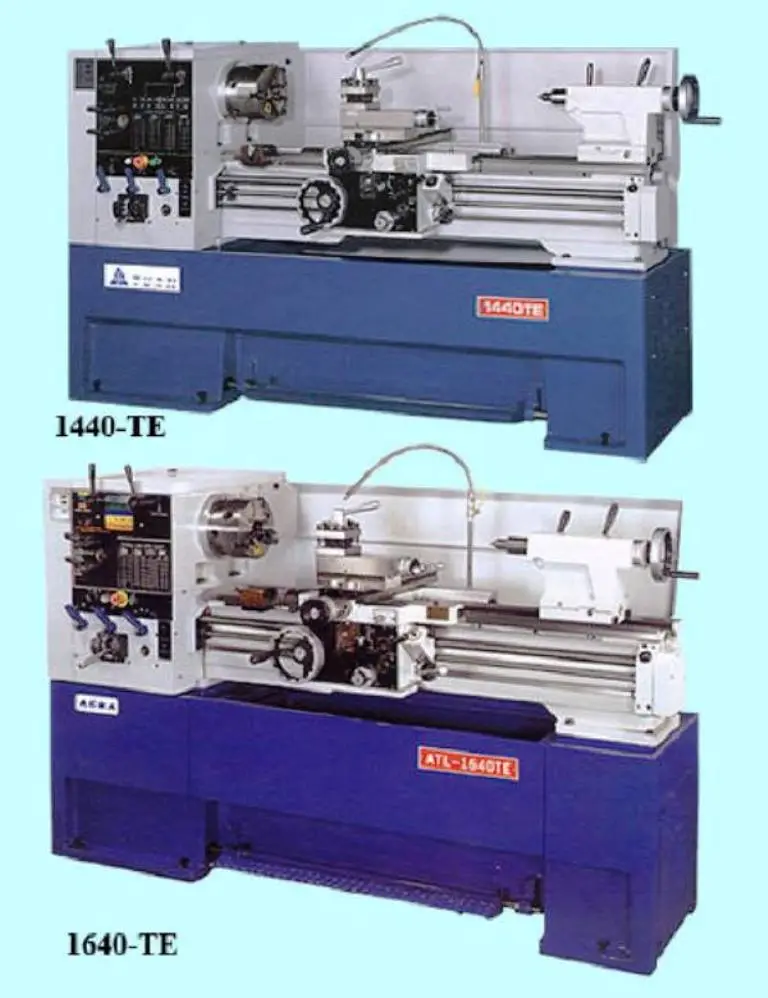

14" x 60" ACRA Model TE Precision Engine Lathe
Have one to sell?
ConditionNew
1 available
New
NEW!! 14"x 60" ACRA Model TE Precision Engine Lathe, Inch/Metric Threading, 5 Hp Motor
BED & STAND
One Piece Cast Iron Floor Stand With Foot Brake
Front Move Chip Tray Floor Stand Or Rear Chip Floor Stand Selected
Bed Width 10 1/4 " Bed Meehanite Casting, Vibration Stress Relieved
Induction hardened And Precision Ground Bed Ways
Precision Hand Scraped Removable Gap Bed
HEAD STOCK
Dynamic Balanced Spindle
Spindle Is Supported By 3 Points Precision Dearings-2 Taper Roller And 1 Ball Bearing
Housing Are Properly Stabilized And Deflection Free
All Gears And Shafts Are Made By Chromium Molybdenum Steel With Segmentation And Precision Ground
EVS Models Forced Lubrication System
Nylon Safety Gears In End Train
SPINDLE
Machined From Forged Alloy Steel, Hardened Ground & Dynamically Balance
Three Point Support By High Grade Precision Machine Tool Taper Roller & Ball Bearings
UNIVERSAL GEAR BOX
Induction Hardened And Ground Gears And Shafts
Wide Threads Cutting Capacity For Imperial, Metric, Module Pitch And Diametrical Pitch
APRON
Right Hand Side Or Left-Hand Size Apron. Hand-Wheel Available As Requested
Integrated Automatic Device For Longitudinal & Cross Feeds, Forward And Reverse Feeds
CARRIAGE & SLIDE
Anti-Float Design, Backlash Eliminator Fitted In Cross Slide Nut
Safety Clutches At Feed Shaft Lever
Dual Reading Dials
One Shut Lubrication For Carriage And Tops Slide
STANDARD EQUIPMENT:
8" 3 Jaw Chuck, Steady/Follow Rest, Coolant System, Full Length Splash Guard,
10" 4 Jaw Chuck, Halogen Light, 4 Way Tool Holder, Chuck Guard,
OPTIONAL ACCESSORIES: ................................PRICE
Face Plate ........................................................ $ 350.00
Micro Bed Stop ................................................ $ 300.00
Taper Attachment ........................................... $ 1,500.00
Taper Attachment Installation ........................ $ 425.00
Lever Type 5C Collet Closer JFK …...…................ $ 1,500.00
Import Collet Closer (Taiwan) ........................... $ 1,000.00
Newall Digital Read-Out-8" X 40" DP700…............ $ 2,280.00
Newall Digital Read-Out-8" X 40" NMS300……………... $ 1,100.00
Newall Digital Read-Out-8" X 60" DP700….................. $ 2,900.00
Newall Digital Read-Out-8" X 60" NMS300………….. $ 1,350.00
Acu-Rite Digital Read-Out-8" X 40" 203.................. $ 2,220.00
Acu-Rite Digital Read-Out-8" X 60" 203.................. $ 2,625.00
Acu-Rite Digital Read-Out-8" X 40" 303…………........ $ 2,620.00
Acu-Rite Digital Read-Out-8" X 60" 303…………....... $ 3,025.00
Sony or Fagor or Mitutoyo Digital Read-Out............. $ P.O.R
D.R.O. Installation……………. .............................. $ 250.00
Aloris Tool Post Set (CXA) 5 pc…………………. $ 1,065.00
Import Quick Change Tool Holder.................... $ 450.00
Live Center MT4…………………............................... $ 100.00
