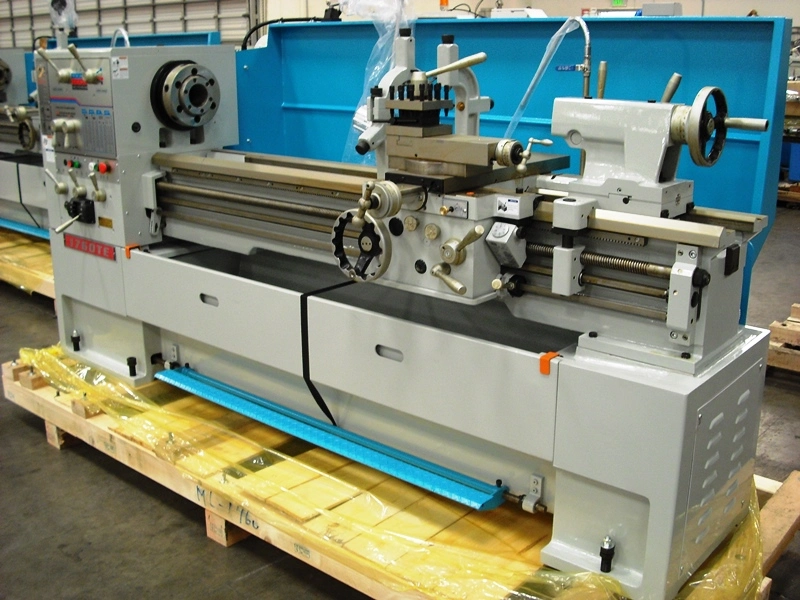

17" X 60" ACRA 1760TE-3 ENGINE LATHE
Have one to sell?
ConditionNew
1 available
New
NEW!! 17" X 60" ACRA 1760TE-3 ENGINE LATHE, 3-1/8” Spindle Bore, 10 Hp, Steady/Follower Rest, Inch/Metric, Tooling.
Series: 1700TE-3
Swing Over Bed: 17"
Swing Over Cross Slide: 10-7/8"
Swing in Gap: 24-7/16"
Spindle Bore:
Spindle Nose: 3-1/8"
D1-8 3-1/8"
Spindle RPM TE: 26-1500 (12 Speeds)
Main Motor: 10 H.P.
Voltage: 230/460V AC ~ 3 PH
STANDARD EQUIPMENT:
10"/12" 3 Jaw Chuck, Coolant System, Full Length Splash Guard, Steady/Follow Rest,
12"/16" 4 Jaw Chuck, Halogen Light, 4 Way Tool Holder,
OPTIONAL ACCESSORIES: PRICE
Face Plate…......................................................................................................................................... $ 350.00
Micro Bed Stop…................................................................................................................................ $ 300.00
Taper Attachment................................................................................................................................ $ 1,750.00
Taper Attachment Installation............................................................................................................. $ 425.00
Lever Type 5C Collet Closer JFK D1-8…………………………………………………………… $ 1,700.00 Import Collet Closer (Taiwan).......................................................................................................... $ 1,200.00
Newall Digital Read-Out-10" X 40" DP700........................................................................................ $ 2,280.00
Newall Digital Read-Out-10" X 40 NMS300………………………………………………………... $ 1,100.00 Newall Digital Read-Out-10" X 60" DP700………………………………………………………… $ 2,900.00 Newall Digital Read-Out-10" X 60" NMS300…………………….………………………………. $ 1,350.00 Newall Digital Read-Out-10" X86" DP700……………………………………………………….... $ 3,750.00 Newall Digital Read-Out-10" X86" NMS300…...……….…………………………………………. $ 1,650.00 Acu-Rite Digital Read-Out-10" X 40" 203......................................................................................... $ 2,235.00
Acu-Rite Digital Read-Out-10" X 60" 203......................................................................................... $ 2,625.00
Acu-Rite Digital Read-Out-10" X 86" 203......................................................................................... $ 3,220.00
Acu-Rite Digital Read-Out-10" X 40" 303......................................................................................... $ 2,640.00
Acu-Rite Digital Read-Out-10" X 60" 303......................................................................................... $ 3,025.00
Acu-Rite Digital Read-Out-10" X 86" 303.......................................................................................... $ 3,620.00
Sony or Fagor or Mitutoyo Digital Read-Out....................................................................................... $ P.O.R. D.R.O. Installation.............................................................................................................................. $ 250.00
Aloris Tool Post Set (CXA) 5 pc……..……….................................................................................... $ 1,065.00
Import Quick Change Tool Holder..................................................................................................... $ 500.00
Chuck Guard……………………....................................................................................................... $ 350.00
Live Center MT 4………………....................................................................................................... $ 100.00
TVS 460V………………………....................................................................................................... $ 500.00
