ACRA Model SET 36160 36" x 160" Engine Lathe,
Have one to sell?
ConditionNew
1 available
New
NEW!! 36" x 160" ACRA Model SET 36160 Engine Lathe, Made In Taiwan, with 6" spindle hole, splash guards, coolant system, 20" 3-Jaw chuck, rapid travels, worklight, 4-way tool holder, steady/follow rest.
Headstock:
• All gears and mandrel are made of alloy steel with heat treatment and precision ground.
• Rotating type speed changing system is easy to operate.
Spindle:
• Large bore spindle, supported by 3-point precision bearings.
• Suitable for heavy-duty cutting.
Tailstock:
• With speed reduced quill suitable for heavy duty drilling, hand wheel is with dual dial..

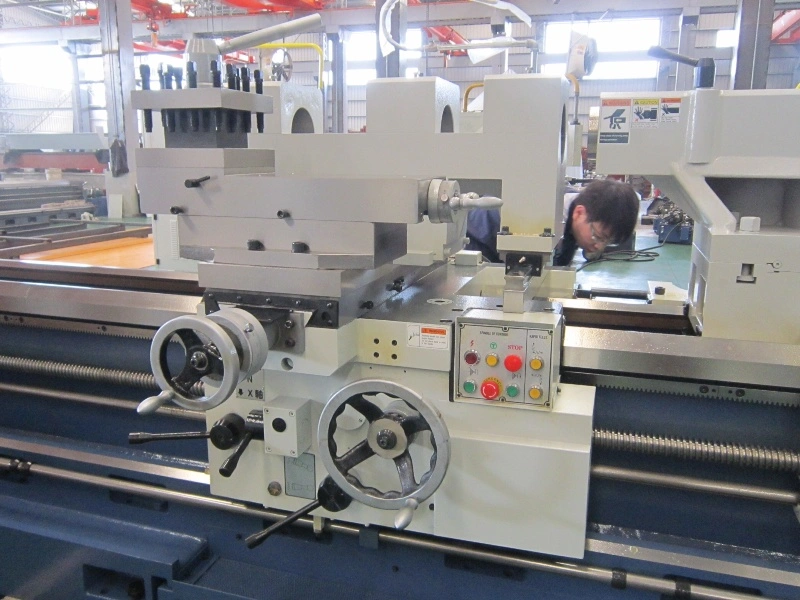

Apron and Saddle:
• Easy-operated overload protect safety devise.
• Central lubrication system can be operated manually or automatically.
Gear Box:
• Universal gear box design, is able to cut metric thread, Imperial thread, module thread without changing gears.
Lathe Bed:
• High tensile ribs structure. high precision and wide bed surface.
• With hardened and precision ground.
• One piece structure lathe bed enhances the machines life and working performance.
Auto Longitudinal Stop:
• Auto longitudinal travel devise will control the feed of tool post.
Emergency Brake System:
• More safe emergency brake system can shut off power supply simultaneously.
Specifications:
Capacity: 36″/47″ x 160″
Swing Over Bed: 36-5/8″
Swing Over Cross Slide: 27-1/2″
Swing In Gap: 47-1/4″
Width of Gap: 10″
Distance Between Centers: 160″
Bed Width: 18-1/8″
Spindle Nose: A2-11
Spindle Bore: 6″
Taper of Spindle: MT NO.5
Spindle Speeds – Steps: 12
Spindle Speeds – Range: 15 ~ 1,000 RPM
Cross Slide Travel: 16-1/2″
Compound Slide Travel: 10″
Inch Threads: 2 ~ 28 TPI
Metric Threads: 0.8 ~ 14 mm
Module Threads: 0.5 ~ 7
Diametrical Threads: 4 ~ 56
Longitudinal Feeds: 0.05″ ~ 0.7 mm/rev
Cross Feeds: 0.025 ~ 0.35 mm/rev
Tailstock:
Quill Diameter: 3-3/4″
Quill Travel: 9″
Quill Taper: MT NO.5
Spindle Drive Motor: 25 HP x 4P
Voltage: 230V/460V AC/3 PH
Weight 16,900 lbs
Dimensions 237 × 63 × 75 in
STANDARD EQUIPMENT:
Full Length Rear Splash Guard
Coolant System
Full Length Splash Guard
Steady/Follow Rest
20" 3 Jaw Chuck
Halogen Light
2 Way Rapid Traverse
4 Way Tool Holder
OPTIONAL ACCESSORIES:
Steady Rest (20”) …………………………………………………………………………………………. $ 3,350.00
Steady Rest (24”) SET36 Only……………………………………………………………………………. $ 4,450.00
Face Plate…………………………………………………………………………………………………. $ 1,150.00
Taper Attachment…………………………………………………………………………………………. $ 4,000.00
Installation Taper Attachment……………………………………………………………………………. $ 750.00
Change 6” to 9” A2-15 Nose……………………………………………………………….……………. $ 20,000.00
Newall Digital Read-Out-60" DP700…………………….…………………….………………………… $ 2,900.00
Newall Digital Read-Out-60" NMS300…………….……………………………………………………. $ 1,600.00
Newall Digital Read-Out-80" DP700.………………………….………………………………………… $ 3,500.00
Newall Digital Read-Out-80" NMS300…………………………………………………………………... $ 1,800.00
Newall Digital Read-Out-120" DP700…………….……………………………………………………… $ 4,495.00
Newall Digital Read-Out-120" NMS300…….………………………………………………………….... $ 2,300.00
Newall Digital Read-Out-160” DP700……………………………………………………………………. $ 5,695.00
Newall Digital Read-Out-200” DP700……….…….…………………………………………………… $ 7,100.00
Newall Digital Read-Out-240” DP700…….…………….……………………………………………… $ 7,550.00
Acu-Rite Digital Read-Out-60"/80"/120" 203/303............................................... $ P.O.R.
Fagor or Mitutoyo Digital Read-Out……………………………………………………………………… $ P.O.R.
Import Quick Change Tool Post ………………………………………………………….……….……… $ 1,600.00
Aloris Tool Post Set (DA) 5 pc…………….……………………………………………………………….. $ P.O.R
