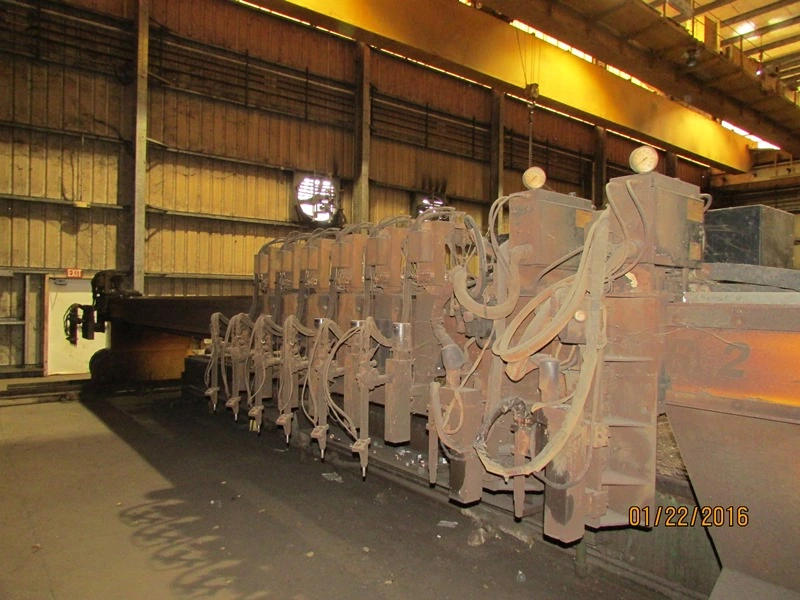

ESAB AVENGER 2/9 PLASMA/OXY SHAPE BURNER

Vision 2000 CNC Control
(2) Plasma Torches with Scribing
(10) Oxy Torches
(2) 600 Amp Esab ESP Power Supplies

Available processes on the Avenger 2 include oxy-fuel cutting, plasma cutting, plasma beveling, oxy-fuel beveling, plasma marking, punch marking, ink-jet marking, zinc marking, and pin-stamp marking. A rider’s platform is another option for the Avenger 2.

The AC brushless servo drive system, which is directly coupled to the planetary gearboxes, allows for the wide speed range of 2 - 1,000 ipm (50.8 - 25,400 mm/min).

*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
Cutting Width 358.7"
Water Table 26' x 82'
Trace Record Speed 2-60 ipm
Speed Range 2-750 ipm
Number of Tool Stations 12
Accuracy (60" x 60") .015"
Repeatability (60" x 60") .005"
Contouring Speed 2-400 ipm
Kerf Compensation Up to .250"
Truck Length 96"
